Follow the steps in this article to start driving your VEX GO Competition Robot with VEXcode GO. For information on how to access VEXcode GO, see this article.
Access the Drive tab in VEXcode GO
To access the Drive tab in VEXcode GO, first ensure the VEX GO Brain is connected to your device. For more information on how to connect your robot to your device, see these articles.

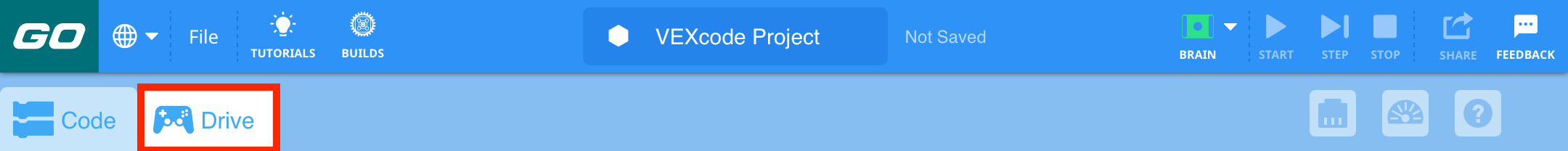

Next, select the Drive tab. VEXcode GO will switch from coding mode to the driving mode.
Drive Mode
Once in Drive mode, you can drive your VEX GO robot using the joysticks at the bottom of the screen.
You can change the type of joystick control for your robot by switching the Drive Mode to one of four different options:
- Tank Drive
- Left Arcade
- Right Arcade
- Split Arcade
Tank Drive

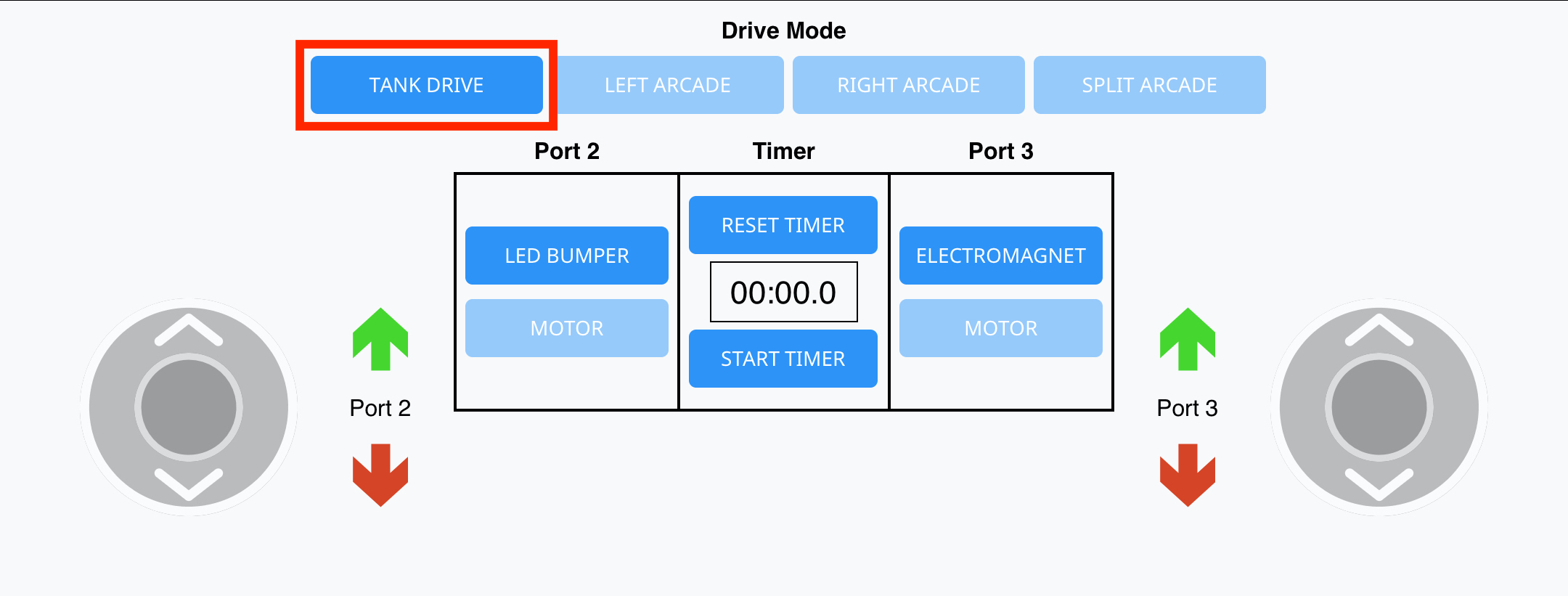

Tank drive uses both joysticks. Select the Tank Drive icon. Two joysticks will be visible.

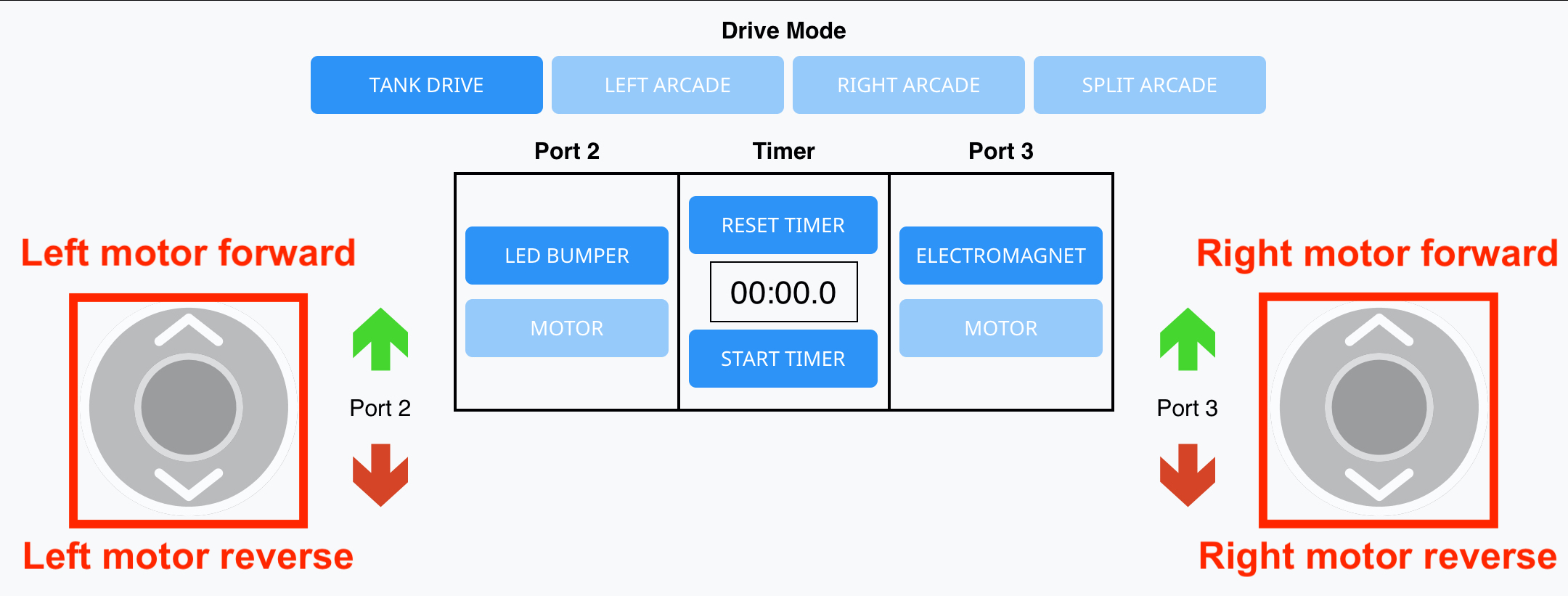

The left joystick will move the left motor forward when moved up, and the left motor backwards when it is moved down. The right joystick works in the same way for the right motor.
- To move your robot forward, move both joysticks up.
- To move backward, move both joysticks down.
- To turn your robot to the right, move your left joystick up and/or the right joystick down.
- To turn your robot to the left, move the right joystick up and/or the left joystick down.
Left Arcade

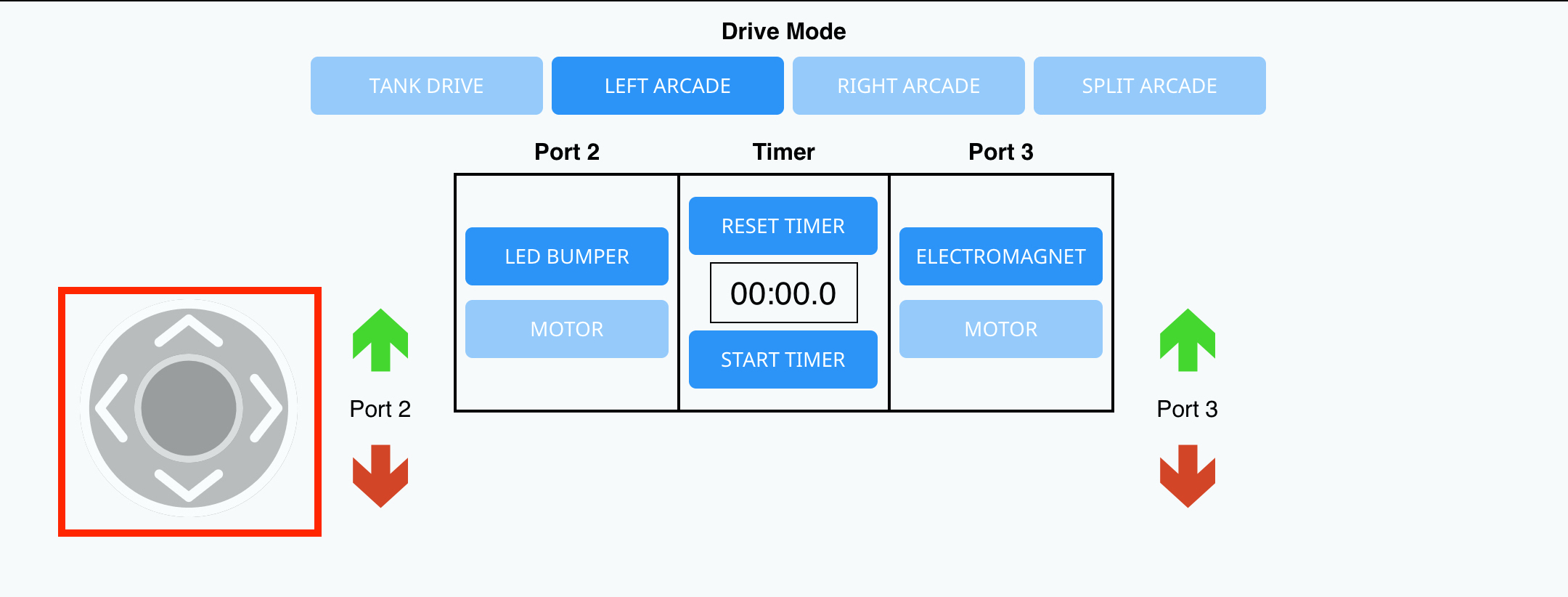

The left arcade only uses one joystick. Select the left arcade icon. The left joystick will be visible.
- To move your robot forward, move the joystick up.
- To move your robot backward, move the joystick down.
- To turn your robot to the right, move the joystick to the right.
- To turn your robot left, move the joystick to the left.
Right Arcade

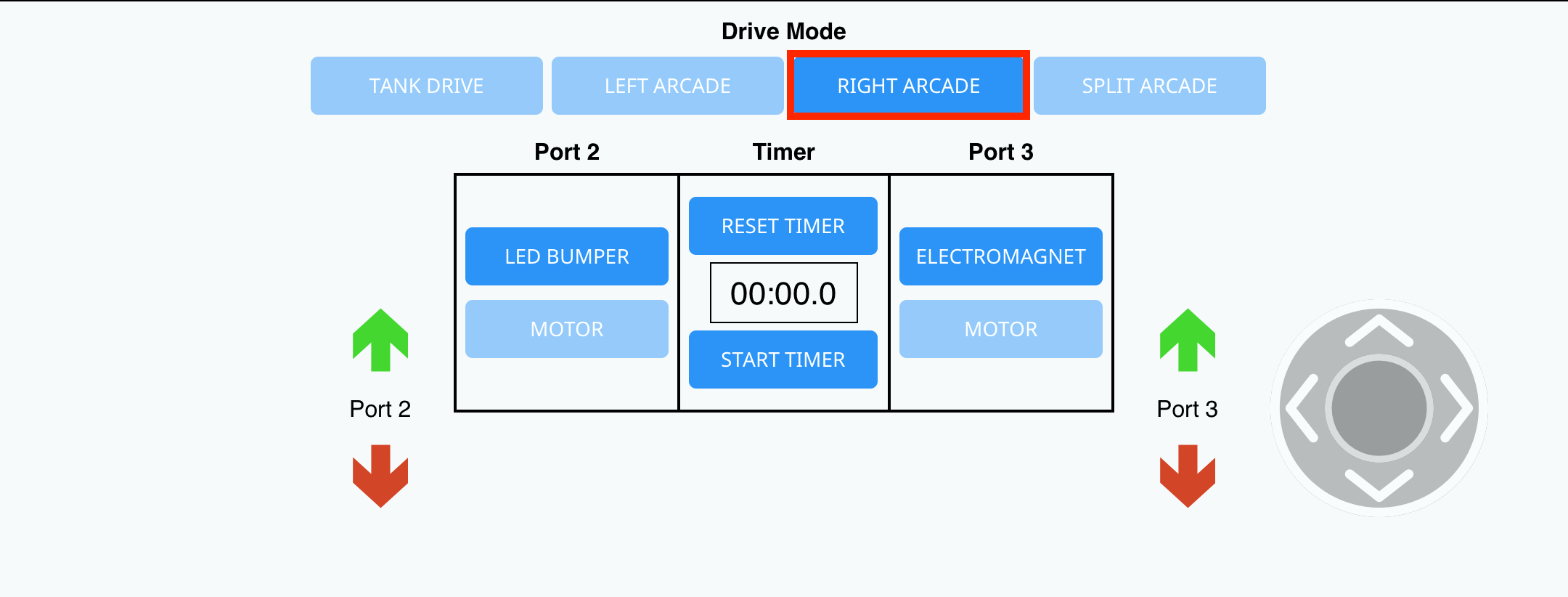

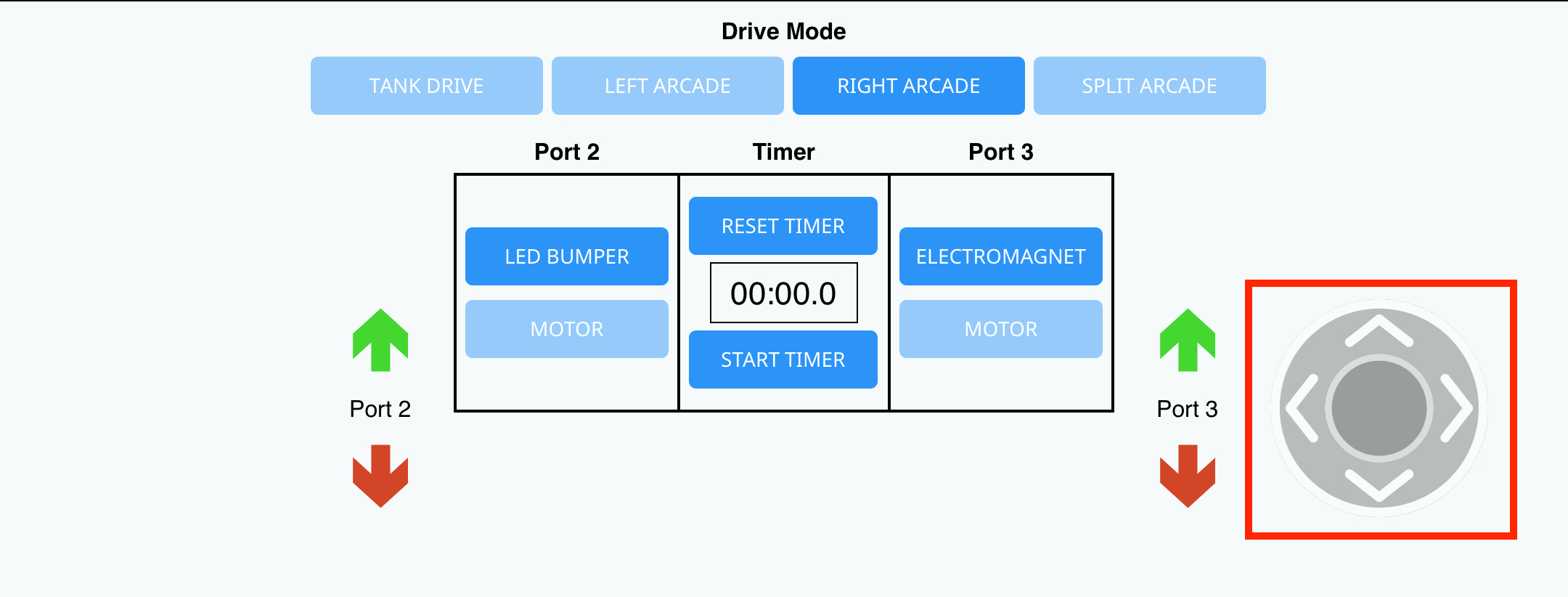

The Right arcade only uses one joystick. Select the Right arcade icon. The Right joystick will be visible.
- To move your robot forward, move the joystick up.
- To move your robot backward, move the joystick down.
- To turn your robot to the right, move the joystick to the right.
- To turn your robot to the left, move the joystick to the left.
Split Arcade

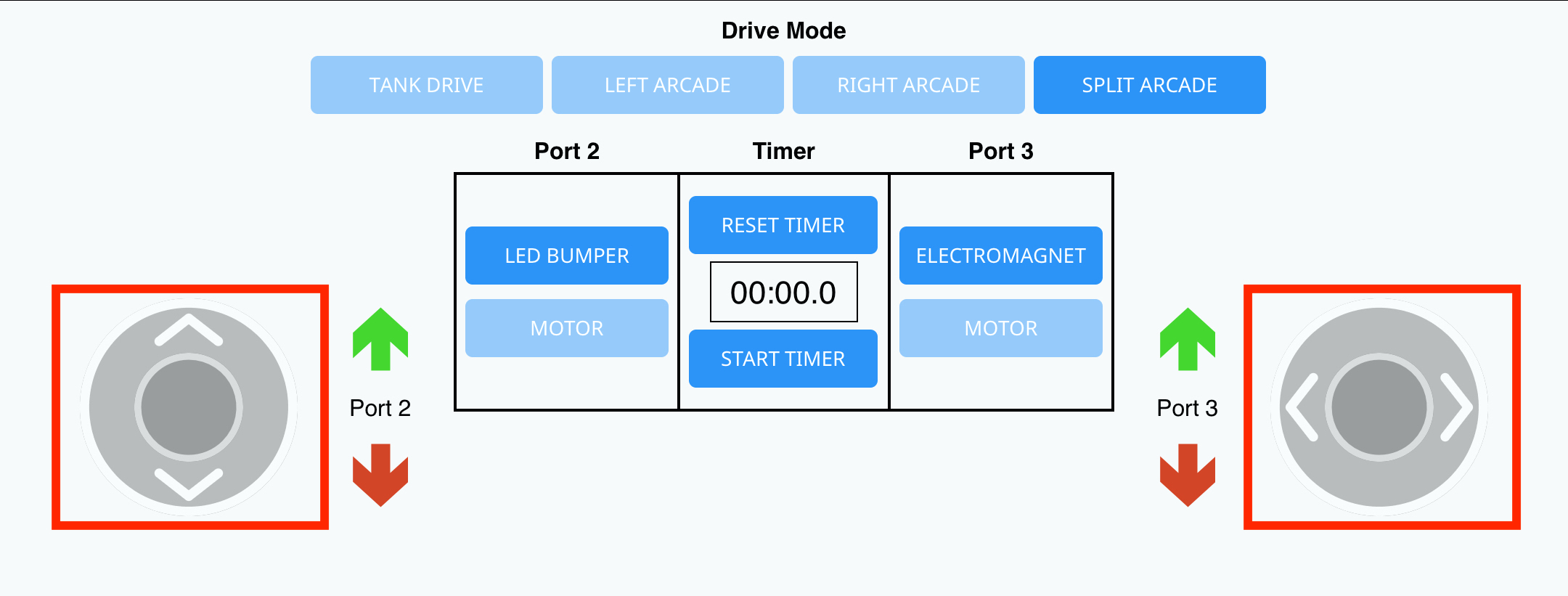

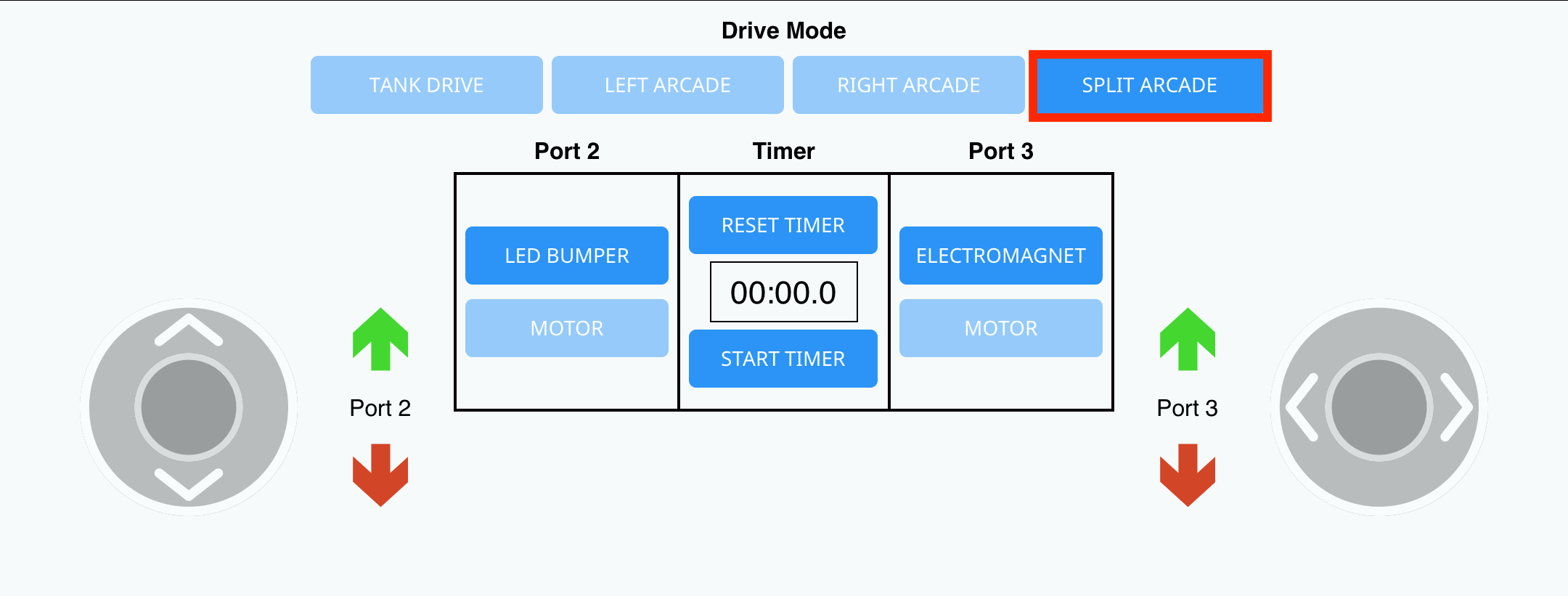

The Split arcade uses two joysticks. Select the Split arcade icon. Both joysticks will be visible.
- To move your robot forward, move the left joystick up.
- To move your robot backward, move the left joystick down.
- To turn your robot to the right, move the right joystick to the right.
- To turn your robot left, move the right joystick to the left.
